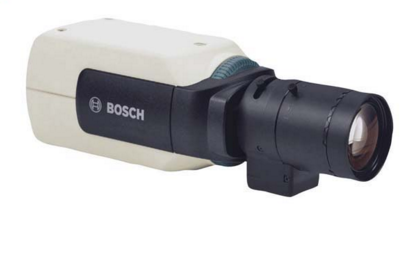

VBC-4075-C11
Image Sensor
960H, 1/3" CCD, sensor resolution 720TVL960H, 1/3" CCD, sensor resolution
System
PAL or NTSC
Total pixels (H x V)
1020 x 596 (PAL)1020 x 508 (NTSC)
Effective pixels (H x V)
976 x 582 (PAL)976 x 494 (NTSC)
Video Output
Composite: 1 Vpp, 75 Ohm
Sync. System
Internal sync., Line-lock
S/N Ratio (sharpness, AGC off)
52 dB min.
Minimum Illumination (F1.2, 50IRE)
Color: 0.1 lx B/W: 0.02 lx (true D/N version)
Minimum Illumination (F1.2, 30IRE)
Color: 0.05 lx B/W: 0.01 lx (true D/N version)
Manual shutter
1/50 – 1/10,000 (PAL)1/60 – 1/10,000 (NTSC)
Digital Noise reduction
2DNR
White Balance
ATW, Push, User1, User2, Anti CR, Manual, Push lock
Light compensation
OFF/BLC/HLC
Digital Dynamic Engine
On, Off
AGC
On, Off
Day/Night
Auto, Color, B/W
Burst
On, Off
Motion detection
4 programmable zones
Privacy
8 programmable zones (4 zones when motion detection is on)
Mirror
On (horizontal), Off
Sharpness
0 ‑ 255
Alarm input (true D/N version only)
Night mode active profile switching, 3.3 V nominal, +40 VDC max.
Alarm output(true D/N version only)
Night mode active, 30 VAC or +40 VDC, max. 0.5 A continuous, 10 VA
OSD language
English, Japanese, German, French, Russian, Portuguese, Spanish, Simplified Chinese
Lens type
Manual, DC IrisDC Iris drive: 50 mA max.
Lens mount
CS (max. lens protrusion 5 mm [0.2 in])C-mount compatible with optional adapter ring
Tripod mount
CS (max. lens protrusion 5 mm [0.2 in])C-mount compatible with optional adapter ring
Tripod mount
Bottom (isolated) and top 1/4-inch 20 UNC
Supply Voltage(VBx-4075-C11, VBx-4075-C21)
12 VDC / 24 VAC
Supply Voltage(VBx-4075-C51)
230 VAC
Power Consumption (true D/N version)
3.6 W max. / 0.3 A
Power Consumption (electronic D/N version)
2.4 W max. / 0.2 A
Dimensions (without lens)
58 x 66 x 122 mm2.28 x 2.6 x 4.8 in
Weight (12 VDC/24 VAC)
500 g (1.10 lbs) without lens
Weight (230 VAC)
600 g (1.32 lbs) without lens
Operating Temperature
-20 °C to +55 °C (-4 ºF to +131 ºF)
Operating Humidity
On, Off
AGC
20% to 90% RH
Storage Temperature
-40 °C to +70 °C (-40 ºF to +158 ºF)
Storage Humidity
up to 98% RH
|
